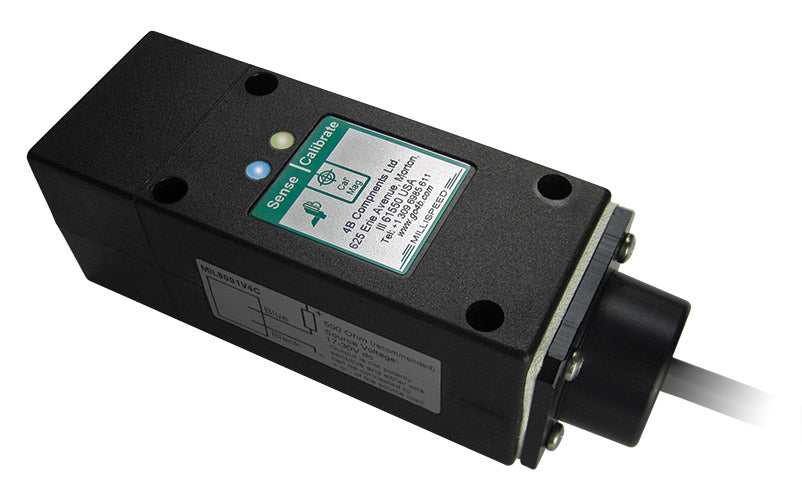

4B Milli-Speed™ Switch – 4–20 mA Inductive Speed Sensor

The Milli-Speed™ is a sealed inductive speed switch with a linear 4–20 mA output, built to detect belt slip, underspeed, stop-motion, low-speed, or zero-speed conditions on bucket elevators, conveyors, airlocks, mixers, fans, grinders, and other rotating equipment. Rugged and simple to calibrate, it performs reliably in the harshest conditions.

An analog inductive sensor in the nose of the enclosure detects a metal target — an existing bolt head or a device mounted to the shaft, such as 4B's Whirligig® sensor mount. The Milli-Speed operates over a 20–3,600 PPM range and is set to normal running speed by simple magnetic calibration (17 mA); output rises toward 20 mA above normal speed and falls toward 4 mA as speed drops.

Features

• Linear 4–20 mA output for belt slip, underspeed, stop-motion, low- and zero-speed detection
• Totally sealed for the harshest conditions
• Simple magnetic calibration
• Wide 20–3,600 PPM speed range
• Works with an existing bolt-head target or 4B's Whirligig® mount

Related accessories: Whirligig® shaft sensor mount (WG1-4B-4), Mag-Con™ magnetic connector (MAG2000), SpeedMaster™ calibration tool (SM2).
