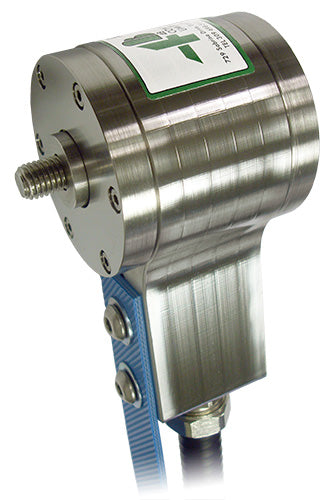

4B Rotech Rotary Shaft Encoder – Stainless Steel

The 4B heavy-duty stainless steel Rotech rotary shaft encoder protects equipment and personnel from dangerous underspeed and belt-slip conditions in extreme environments. It's also used for accurate speed control, direction-of-rotation detection, gate-position indication, and counting shaft revolutions.

An inductive sensor in the encoder body detects a steel rotor; for slow-speed or accurate position control, a photodiode reads slots on a steel disk, producing one pulse per rotor slot. The stainless housing suits washdown and corrosive environments.

Features

• Heavy-duty stainless steel construction for extreme/washdown environments
• Underspeed, belt-slip, speed control, direction and position sensing
• Inductive + photodiode sensing for accurate low-speed output
• Available in 304 or 316 stainless

Versions

• RSE304SS4VB — 304 stainless steel
• RSE316SS4VB — 316 stainless steel

Related: Ultra Wash Down version with grease zerk (XRSE), Speed Relay (SR2V1-1), Tachometer (TACH3V5).
