4B Whirligig® – Universal Shaft Sensor Mount

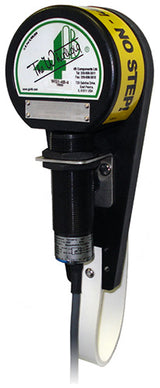

The Whirligig® is a fully guarded target that makes mounting motion and speed sensors simple, safe, and reliable. This universal shaft sensor mount accepts all industry-standard 18 mm and 30 mm cylindrical and DIN-style inductive sensors — including 4B's M100, M300, M800 Elite, and Milli-Speed sensors.

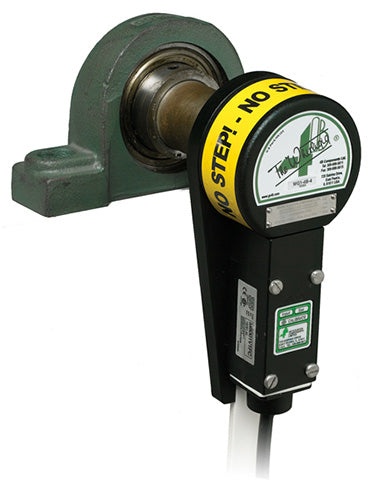

The sensor bolts to the Whirligig base plate, and the complete assembly mounts to the machine shaft through a 1/2 in. UNC tapped hole or connects magnetically with 4B's patented Mag-Con™ adaptor. Because the entire assembly turns with the shaft, machine or shaft vibration does not affect sensor performance.

Features

• Fully guarded target for easy, safe sensor mounting
• Fits DIN-style and standard cylindrical inductive sensors (18 & 30 mm)
• Simple installation — 1/2 in. UNC tapped hole or Mag-Con™ magnetic connection
• Available with 1, 2, 4, or 8 targets
• Compatible with all 4B speed switches and inductive sensors

Specifications

• Shaft material: stainless steel
• Body material: polypropylene
• Bearing: sealed heavy-duty stainless steel
• Thread size: 1/2 in. UNC
• Hex wrench size: 5/8 in.
• Maximum speed: 1,500 RPM
• Pulses / targets: 1, 2, 4, or 8

Compatible 4B sensors

• Milli-Speed Switch, M800 Elite, M300 Slipswitch, M100 Stopswitch
• P800 / P300 / P100 ProxSwitch

Note: an 18/30 mm bracket (WGB1830) is included with each Whirligig. The Mag-Con™ magnetic connector (MAG2000) is available separately.
